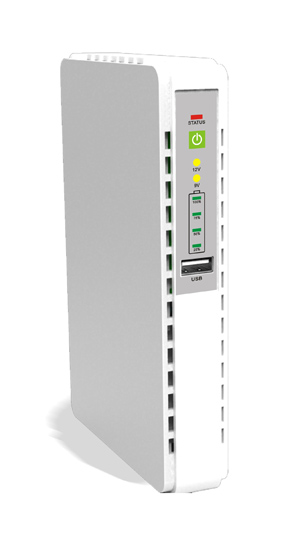

ECO NET Mini-DC-USV 12 V 18 W mit POE und USB
1. 8800-mAh-Lithiumbatterien mit hoher Kapazität und 18 W können eine Backup-Zeit von 6 Stunden für einen 5-W-Router erreichen.
2. Mehrere USB-, DC- und POE-Schnittstellen mit unterschiedlichen Ausgangsspannungen (5 V/9 V/12 V/15 V/24 V) für alle Arten von digitalen Heimgeräten.
3. Eingebauter Adapter ermöglicht breite Wechselspannung (85-265 Vac)
4. Leichte, kompakte Größe und verschiedene Farben sind erhältlich.
5. Intelligentes Schaltungsdesign mit Überladungs-, Überentladungs- und Kurzschlussschutz
- 18W/ 30W
- 7200 mAh/ 8800 mAh
- 100-240 VAC
- 220-240 VAC
- ÖKO 418
Einzelheiten
Unterbrechungsfreie Stromversorgung DC USV 18 W mit 8800 mAh Akku
Produktbeschreibung |
1. DC-USV sind für die meisten digitalen Produkte auf dem Markt geeignet, wie z. B. CCTV MONITOR POE CAM TIMERECODER WIFI MONITOR.
2. Unser Gleichstrom-Notstromsystem verfügt über eine Batteriemanagementsystemtechnologie. Mini-DC-USV verfügt über verschiedene Schutzmodi, z. B. Überladung, Überentladung und Kurzschlussschutz.
Anwendungsgebiete |
Geeignet für POE-SENSOR, Router, WIFI, Monitor, Zeitschreiber für Unternehmen, Regierung, wissenschaftliche Forschung, Verkehr, Landesverteidigung, Informations- und Bildungsindustrie.
Spezifikationen |
| ECO Net-Serie (DC-zu-DC-Power-USV) |
Modell # | ÖKO 412 | ÖKO 418 | ECO 418 PRO | ECO 430 PRO |
EINGANG | ||||
Eingang Stromspannung | 100-240 VAC | |||
AUSGANG | ||||
Ausgabe Stromspannung (Optional) | USB 2a | 5V+USB 2a | 5V+USB 2a | 5V+USB 2a |
9V/12V 1A | 9V/12V 1A | 9V 1A | 9V 2a | |
15 V/24 V (STROM) 0,5A | 15 V/24 V (STROM) 0,5A | 12V 1A | 12V 2a | |
15 V/24 V (STROM) 0,5A | 15 V/24 V (STROM) 1A | |||
Stromspannung wählen | Wählen durch Die gleiten Schalter | |||
Ausgabe Energie | 15 W | 18W | 18W | 30 W |
Transfer Zeit | 0 Frau | |||
BATTERIE | ||||
Batterie Typ | Lithium Batterie | lifepo4 Batterie | ||
Menge & Kapazität von Batterie | 8800mah | 7200mah | ||
Zyklus Leben | 300 Fahrräder | 1000 Fahrräder | ||
IN RECHNUNG STELLEN | ||||
Laden Zeitraum | Typisch: 2-3 Std. | |||
KÖRPERLICH | ||||
Einheit Abmessung (mm) | 159*104*28 | |||
Netz Gewicht (kg) | 0,4 | |||
UMGEBUNG | ||||
Umfeld of performance | Temperature 0℃~40℃, Humidity 20%~90% | |||
Noise level | Less than 40dB |
Performance Characteristics |
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.
2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.
3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.
4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.
5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.
6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.
7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.
8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.
9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.
